Primesat 2.3m prime focus satellite dish.

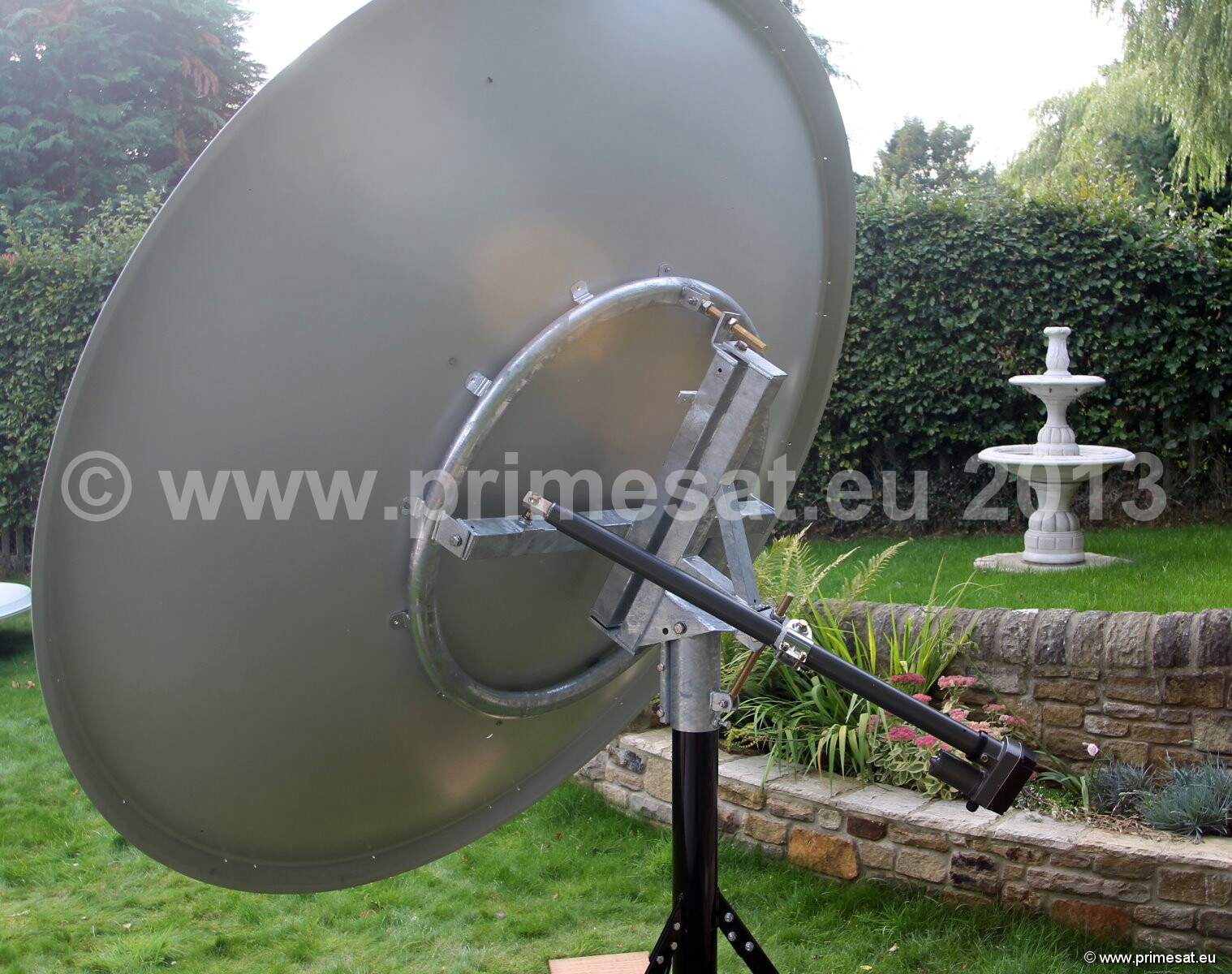

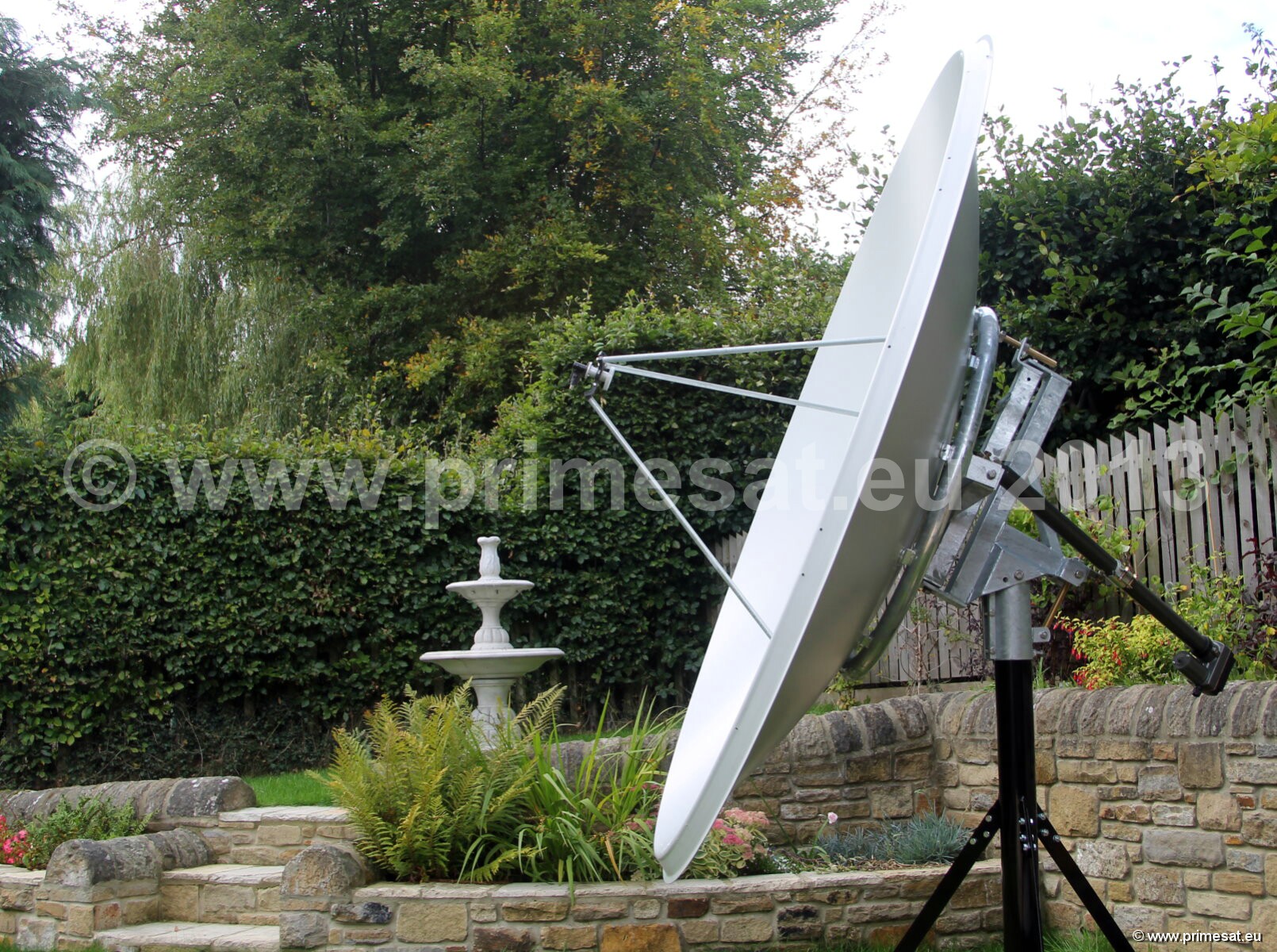

Primesat P23MOT 2.3m prime focus motorised dish. At last a high gain high quality prime focus dish.In the early days of satellite most dishes were prime focus. These days most dishes are offset.This is two ways of doing the same job but prime focus dishes point upwards and look purposeful.From the appearance point of view they are usually the enthusiast's favorite. This one ismade of aluminuim and is one piece. (As a general rule, aluminium is preferable to steeland 1-piece tends to be more efficient that "petalised" or segments.) This attractive dishcomes complete with a very heavy duty polar mount, a prime focus Primesat matched feedhornand Inverto LNB. The polar mount is "dipped galvanised" which is the best possible type of treatment for withstanding corrosion in high salt areas. Everything about this dish is high quality. All of the nuts and bolts are made of stainless steel. The elevation adjusters are made of brass.An optional Primesat ground stand with a 100mm diameter pole and at 1.4m high is also available. 24 bolt fixing.

Technical Data
Dish material - Aluminium

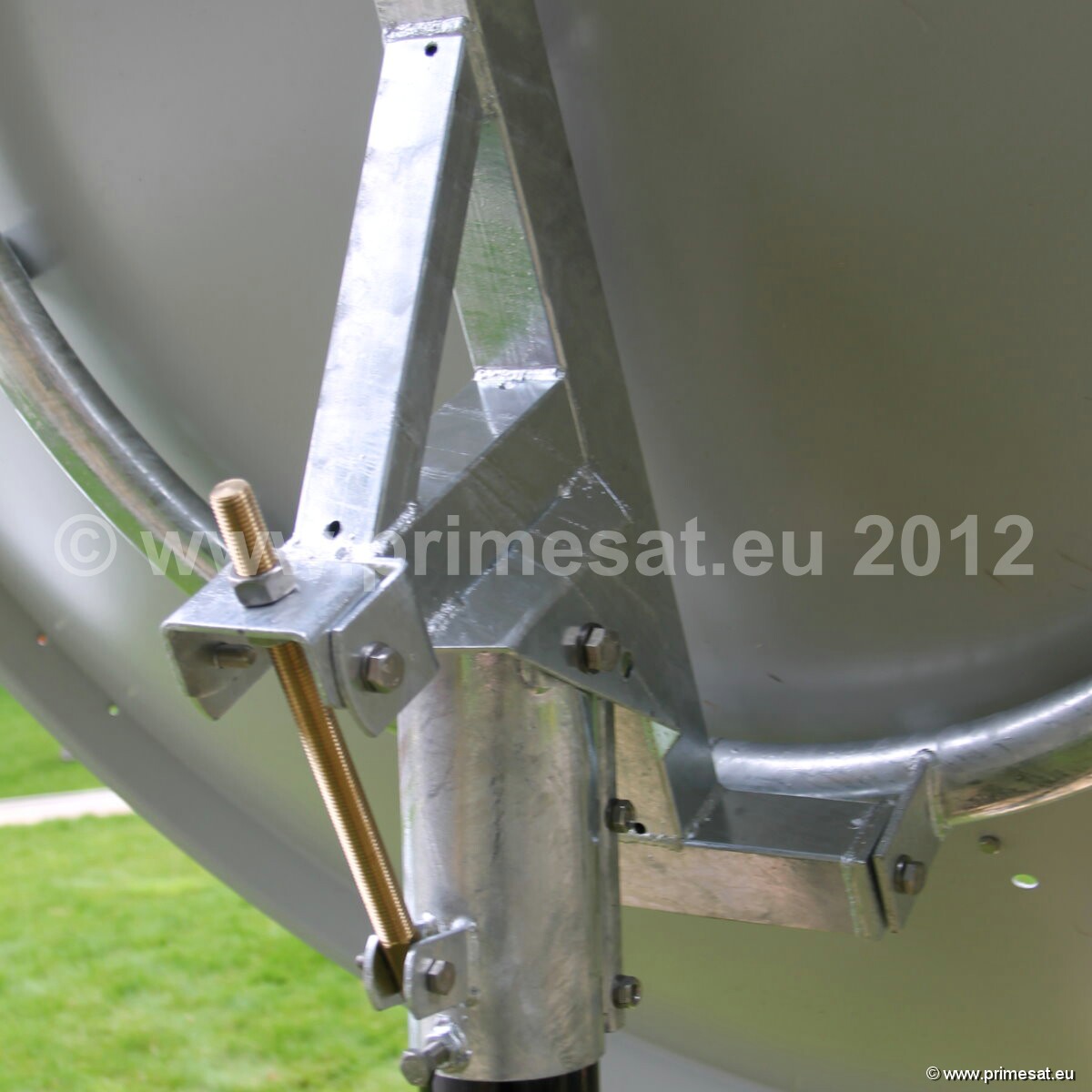

Polar mount - Heavy duty galvanised steel polar mount. The collar fits a 100mm diameter pole. The feed support arms are dipped galvanised.
Adjustable feed support boss included, 23mm-40mm.
Optional C Band feed support boss available 23mm-60mm.

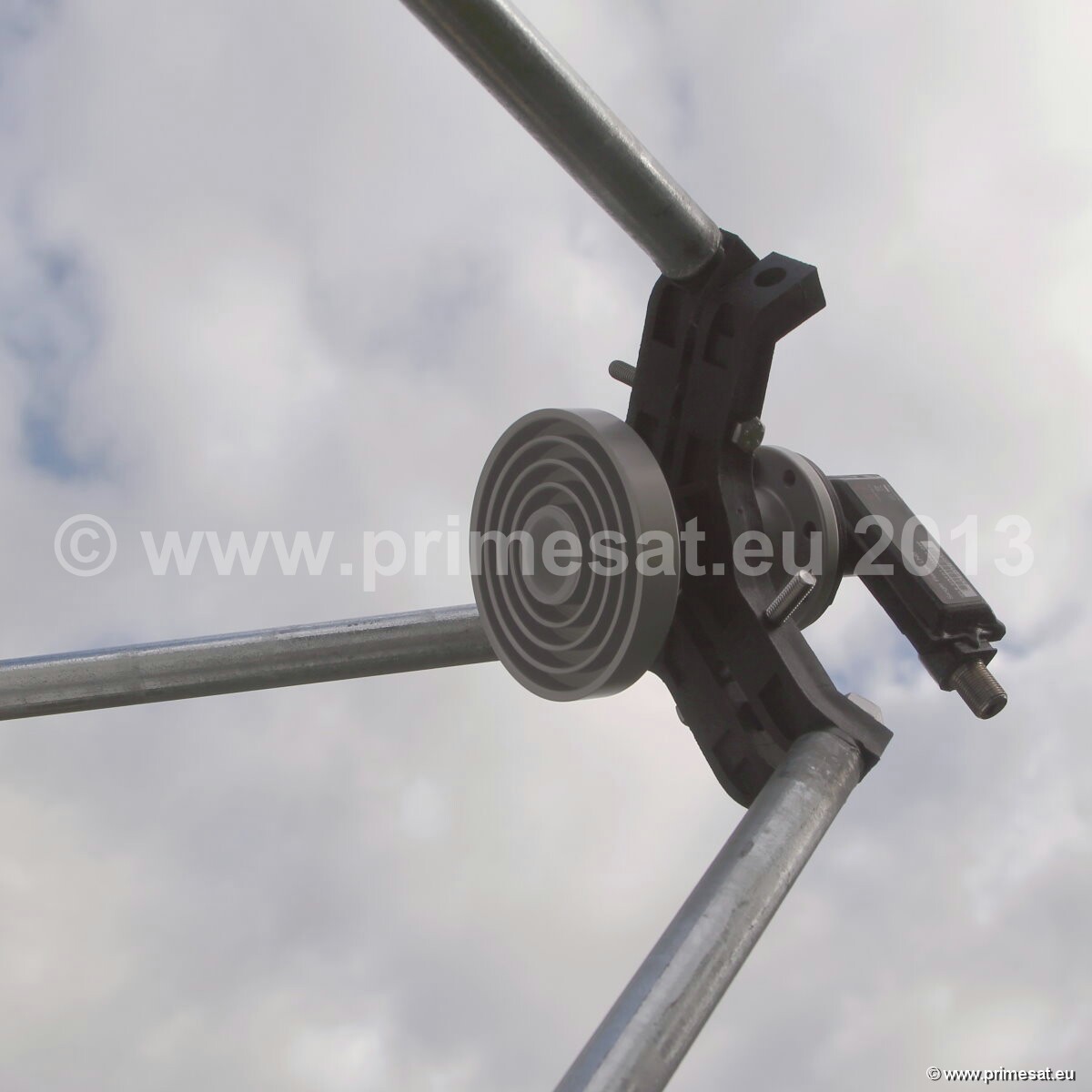

Primesat matched feedhorn and Inverto c120 flange LNB included. Optional twin, quad or quatro LNBs available.
F/D Ratio - 0.41
Gain @ 10.75 GHz 46.4 dB
Gain @ 11.75 GHz 47.4 dB
Gain @ 12.75 GHz 48.0 dB
Cross polarisation greater than 30dB
Beam width 0.7
Fully dipped galvanised AZEL mount.
Matched 0.41 F/D Primesat feedhorn.
Electrical useable diameter 2290cm Actual diameter 2470cm.
Weight of reflector 33.8Kg. Weight of fixed AZEL mount 39.2Kg Total 73Kg.
Frequency Range 10,50 GHz - 13,00 GHz

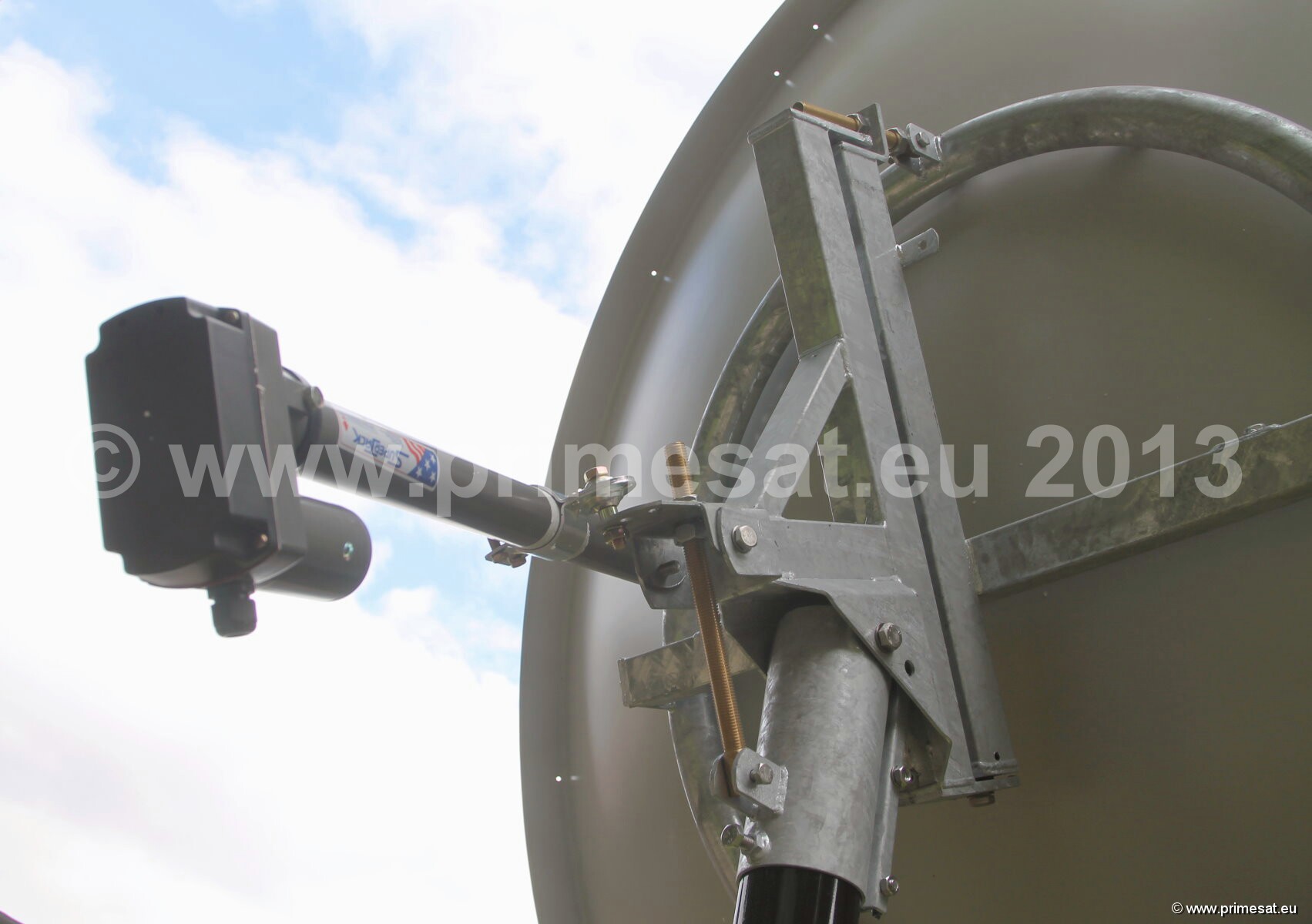

Motorised version Sperjack QARL3636, 24-inch heavy-duty 36V Superjack actuator included.

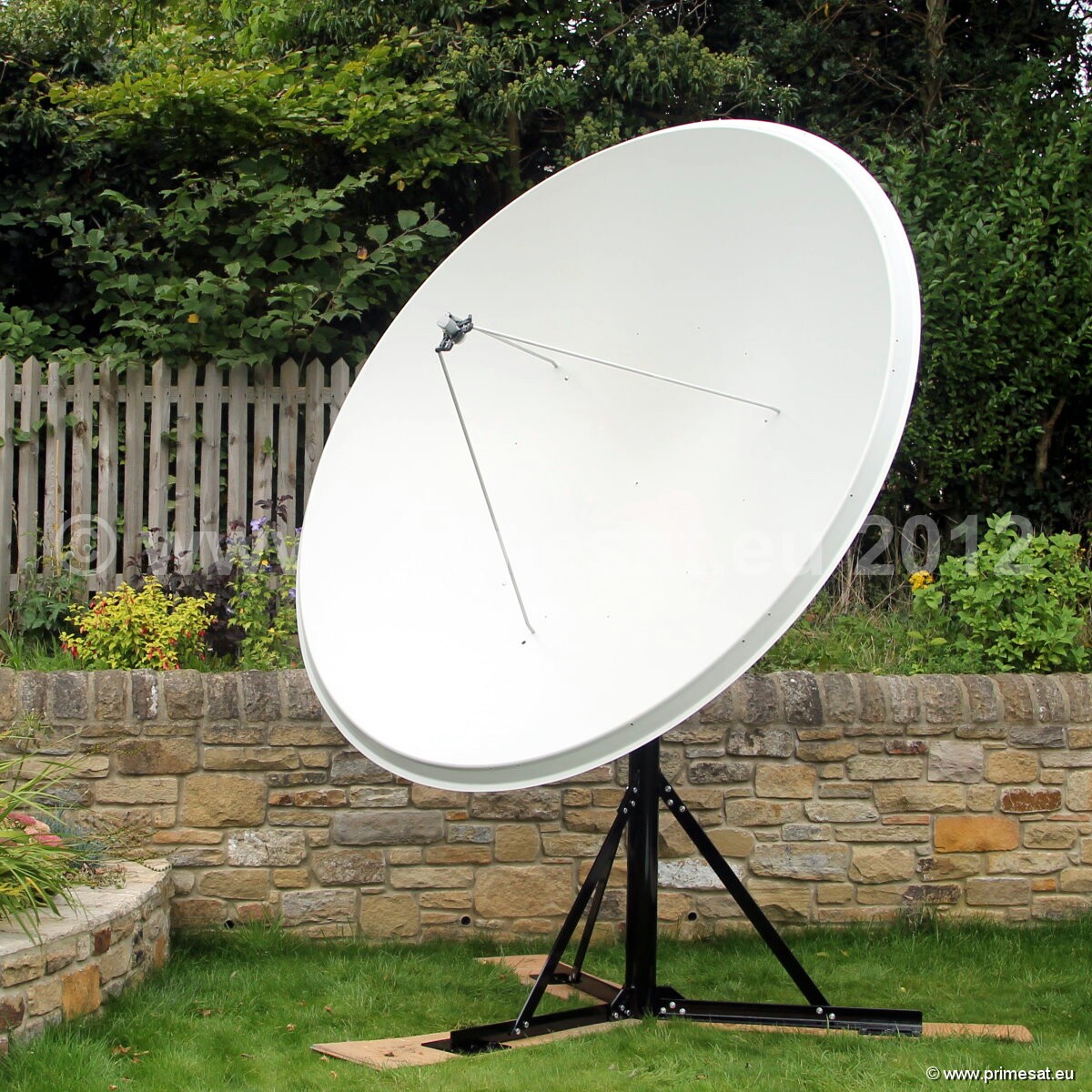

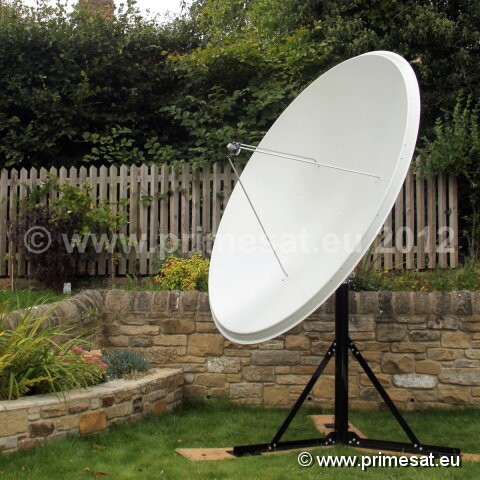

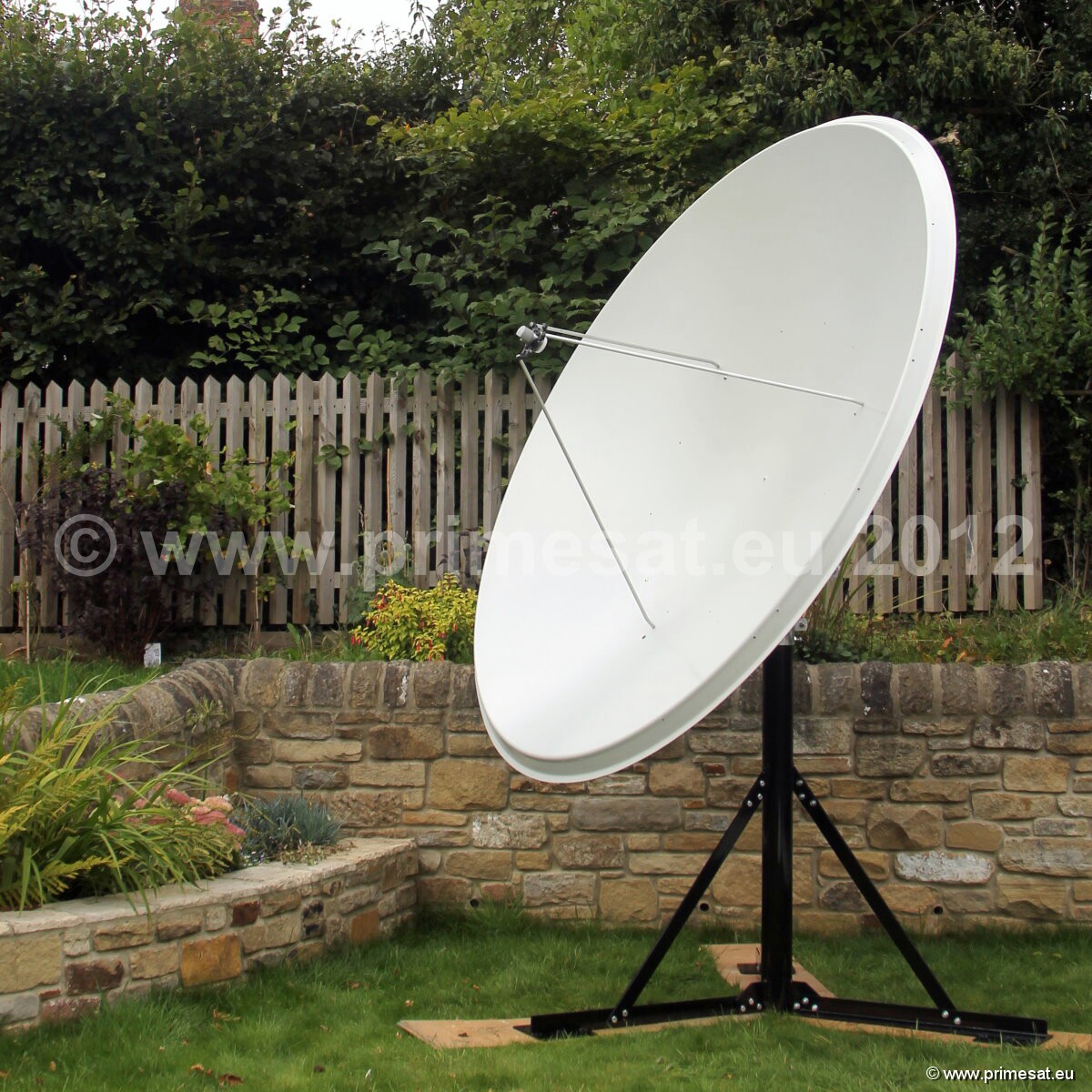

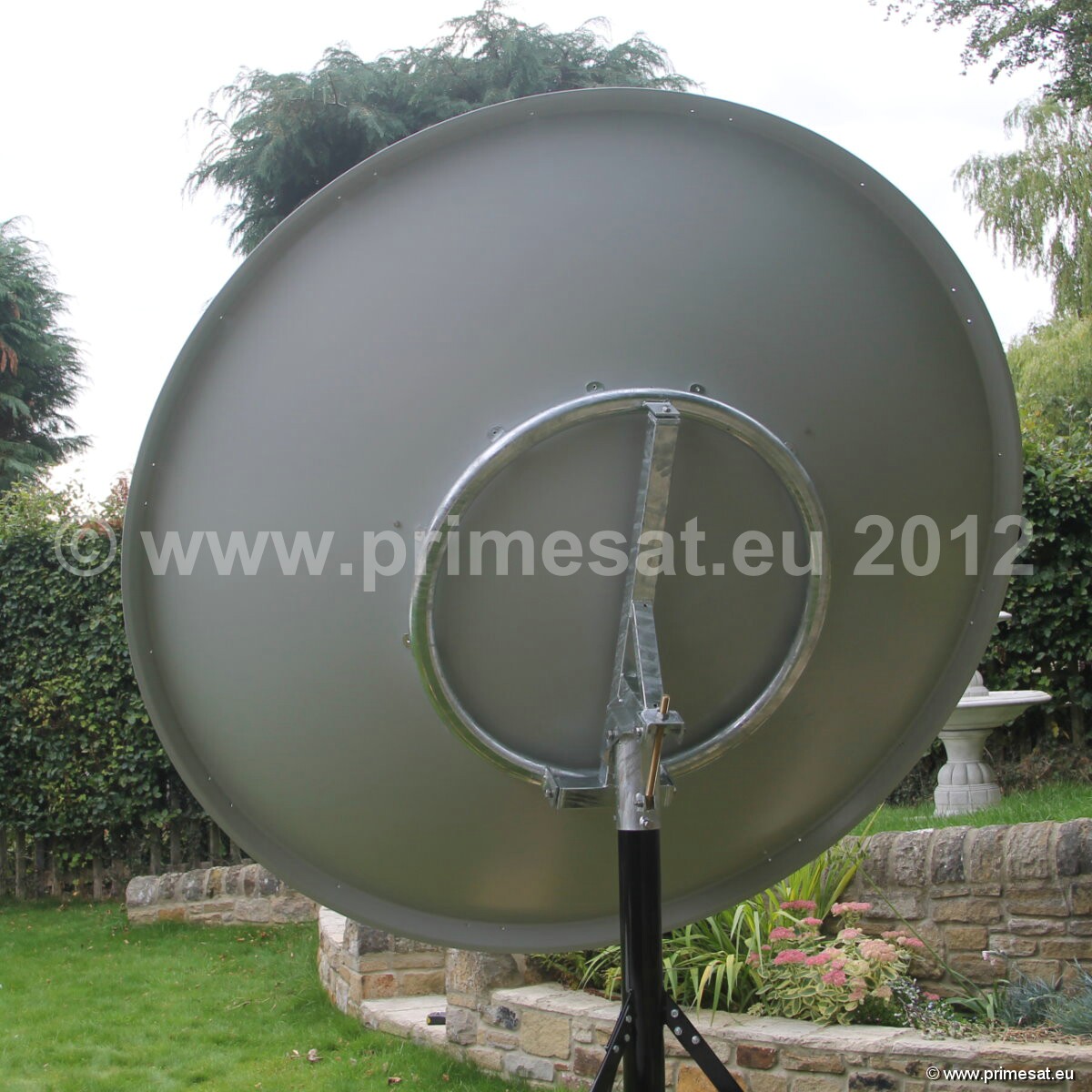

Primesat P23FIX 2.3m prime focus fixed dish. Specifications as per technical data above.The fixed version is shown in the pictures.The fixed version uses the same reflector and a galvanised AZEL mount with a collar for a 100mm poleAn optional Primesat ground stand with a 100mm diameter pole and at 1.4m high is also available. 24 bolt fixing.Again stainless steel bolts, nuts and brass elevation adjusters are used. See pictures on the left.

3.1m upgrade extensions - Extensions are available for this dish to increase it's size to 3.1m. This increases the gain by 2.1dB at all frequencies. (Remember an increase of 3dB is a doubling of signal strength.)
