Primesat WMD30050 double mount with legs "above the gutter" for
dishes up to 1.4m. 50mm pole. 300mm stand-off. 48mm diameter pole
Pole and clamps are galvanised.
Designed for situations where the gutter is large and a stand off is required.
300mm stand-off.
2m pole.
20 bolt fixing (strengthened design)
20 X coach bolts and plugs are required.
Ideal for dishes in more exposed locations and up to 1.2m that use a 50mm pole dish
Ideal for the Triax 80cm, 90cm, 1.1m, Orbital 1,0m and 85cm transparent dishes.
Black mount and galvanised pole. Galvanized clamps. Notice the thickness of the metal.
The mount is etch primed with an oven baked final coating.
An exclusive high quality product.
We have manufactured these mounts since 1991
Primesat WMD45050 double mount with legs "above the gutter" for
dishes up to 1.4m. 50mm pole. 450mm stand-off. 48mm diameter pole
Pole and clamps are galvanised.
Designed for situations where the gutter is large and a large stand off is required.
450mm stand-off.
2m pole.
20 bolt fixing (strengthened design)
20 X coach bolts and plugs are required.
Ideal for dishes in more exposed locations and up to 1.2m that use a 50mm pole dish
Ideal for the Triax 80cm, 90cm, 1.1m, Orbital 1,0m and 85cm transparent dishes.
Black mount and galvanised pole. Galvanized clamps. Notice the thickness of the metal.
The mount is etch primed with an oven baked final coating.

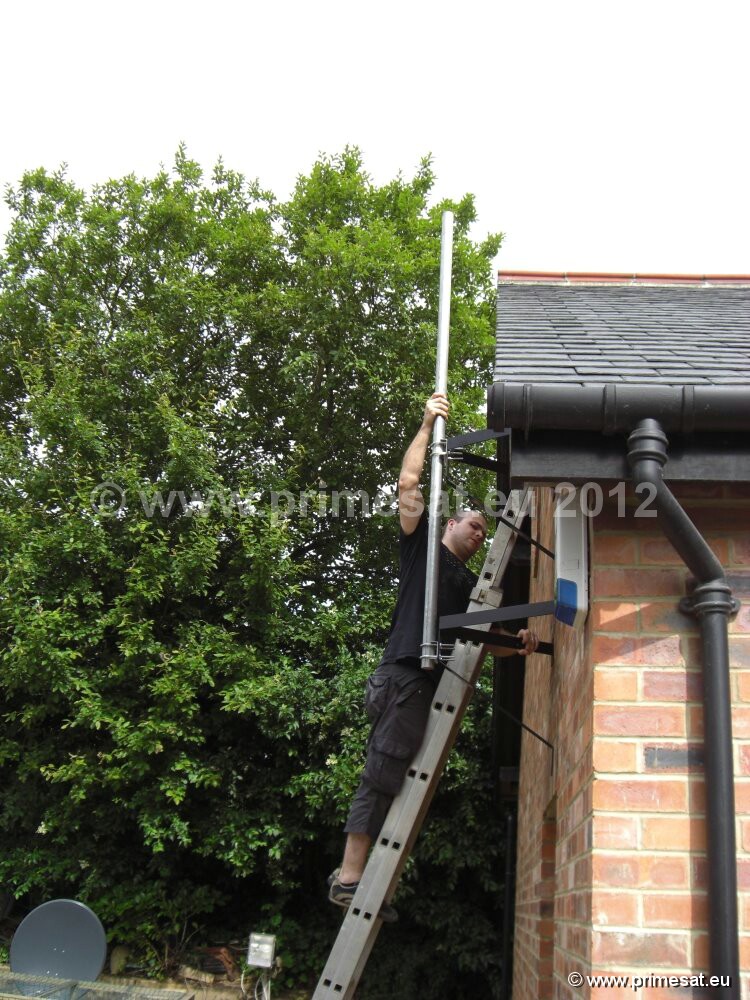

In the pictures, the gutter overhang is such that a 300mm stand-off would be OK
but for larger overhangs this wall mount with a 450mm stand-off is needed.
An exclusive high quality product.
Primesat WMD45050BT bolt together double mount with legs "above the gutter". 48mm diameter, 2m pole. 450mm stand-off.
Primesat WMD450BT bolt together double mount with legs "above the gutter". 48mm diameter, without pole. 450mm stand-off.
We have manufactured these mounts since 1991
Primesat WMD30076 double mount with legs "above the gutter".
76mm diameter, 2m pole. 300mm stand-off. 76mm diameter pole
Heavy duty for exposed locations.
300mm stand-off (to clear gutter). Width 750 mm. 2m pole. 20 bolt fixing.
20 X coach bolts and plugs are required.
Please note that the 2m, 76mm dia. pole can be upgraded to a 3m, 76mm dia. pole.
Ideal for dishes in more exposed locations and up to 1.5m including the Raven 1.2m dishand the Gibertini 1.5m dish. (Note - Raven dishes used to be "Andrews" and before that "Channel Master")
Black mount and galvanised pole.
Galvanized clamps.
The mount is etch primed with an oven baked final coating.
An exclusive high quality product.
You can also buy the mount without a pole.
We have manufactured these mounts since 1991
Primesat WMD45076 double mount with legs "above the gutter".
76mm diameter, 2m pole. 450mm stand-off. 76mm diameter pole
Heavy duty for exposed locations.
450mm stand-off (to clear gutter). Width 750 mm. 2m pole. 20 bolt fixing.
20 X coach bolts and plugs are required.
Please note that the 2m, 76mm dia. pole can be upgraded to a 3m, 76mm dia. pole.
Ideal for dishes in more exposed locations and up to 1.5m including the Raven 1.2m dishand the Gibertini 1.5m dish. (Note - Raven dishes used to be "Andrews" and before that "Channel Master")
Black mount and galvanised pole.
Galvanized clamps.
The mount is etch primed with an oven baked final coating.
An exclusive high quality product.
You can also buy the mount without a pole.
We have manufactured these mounts since 1991
Primesat WMD45076BT bolt together double mount with legs "above the gutter". 76mm diameter, 2m pole. 450mm stand-off.
Primesat WMD450BT bolt together double mount with legs "above the gutter". 76mm diameter, without pole. 450mm stand-off.
Primesat pole upgrade OPT2M3M - increase 76mm galvanised heavy duty pole length from 2m to 3m
Primesat WMD55076 Double mount with legs "above the gutter".
76mm diameter, 2m pole. 550mm stand-off. 76mm diameter pole
Heavy duty for exposed locations.
550mm stand-off (to clear gutter). Width 750 mm. 2m pole. 20 bolt fixing.
20 X coach bolts and plugs are required.
Please note that the 2m, 76mm dia. pole can be upgraded to a 3m, 76mm dia. pole.
Ideal for dishes in more exposed locations and up to 1.5m including the Raven 1.2m dishand the Gibertini 1.5m dish. (Note - Raven dishes used to be "Andrews" and before that "Channel Master")
Black mount and galvanised pole.
Galvanized clamps.
The mount is etch primed with an oven baked final coating.
An exclusive high quality product.
You can also buy the mount without a pole.
We have manufactured these mounts since 1991
Primesat WMD55076BT bolt together double mount with legs "above the gutter". 76mm diameter, 2m pole. 550mm stand-off.
Primesat WMD550BT bolt together double mount with legs "above the gutter". 76mm diameter, without pole. 550mm stand-off.
Primesat pole upgrade OPT2M3M - increase 76mm galvanised heavy duty pole length from 2m to 3m
