Primesat WMS45050 heavy duty wall mount. Ideal for south facing walls, (or, mostly south facing e.g. south east or south west facing.) 450mm stand off, 50mm pole diameter. 10 bolt fixing.Most standard dishes up to 1.0m have clamps to suit a 50mm pole.(Not suitable for a Sky mini dish which uses an integrated wall mount particular only to Sky dishes.) These mounts are fully welded, the use thick steel and if correctly fitted will withstand extreme wind loads.Up to 10 coach bolts and plugs can be used to fix this mount to the wall, 4 to the left, 4 to the right and two to the bottomBlack mount and galvanised pole. Galvanized clamps. The mount is etch primed with an oven baked final coating.An exclusive high quality product.We have manufactured these mounts since 1991

Primesat WMS45076 heavy duty wall mount. For south facing walls, (or, mostly south facing e.g. south east or south west facing.) 450mm stand off, 76mm pole diameter. 10 bolt fixing.Ideal for motorized dishes as most motors including Diseqc motors will fit 50mm or 76mm poles. A 76mm pole is ideal as the motor clamps will have a better grip on a larger pole. Also ideal for fixed 1.2m dishes that require a 76mm pole in a good south facing location where minimal stand off is required.(Not suitable for a Sky mini dish which uses an integrated wall mount particular only to Sky dishes.) These mounts are fully welded, the use thick steel and if correctly fitted will withstand extreme wind loads.Up to 10 coach bolts and plugs can be used to fix this mount to the wall, 4 to the left, 4 to the right and two to the bottomBlack mount and galvanised pole. Galvanized clamps. The mount is etch primed with an oven baked final coating.An exclusive high quality product.We have manufactured these mounts since 1991

Primesat WMS55076 heavy duty wall mount. For south facing walls, (or, mostly south facing e.g. south east or south west facing.) 550mm stand off, 76mm pole diameter. 10 bolt fixing.Ideal for motorized dishes as most motors including Diseqc motors and 36V motors will fit 50mm or 76mm poles. A 76mm pole is ideal as the motor clamps will have a better grip on a larger pole. This mount is ideal for motorised 1.2m dishes that require a 76mm pole as 550mm of stand off is sufficient to a 1.2m dish to track the arc and have plenty of clearance from the wall.These mounts are fully welded, the use thick steel and if correctly fitted will withstand extreme wind loads.Up to 10 coach bolts and plugs can be used to fix this mount to the wall, 4 to the left, 4 to the right and two to the bottomBlack mount and galvanised pole. Galvanized clamps. The mount is etch primed with an oven baked final coating.An exclusive high quality product.We have manufactured these mounts since 1991

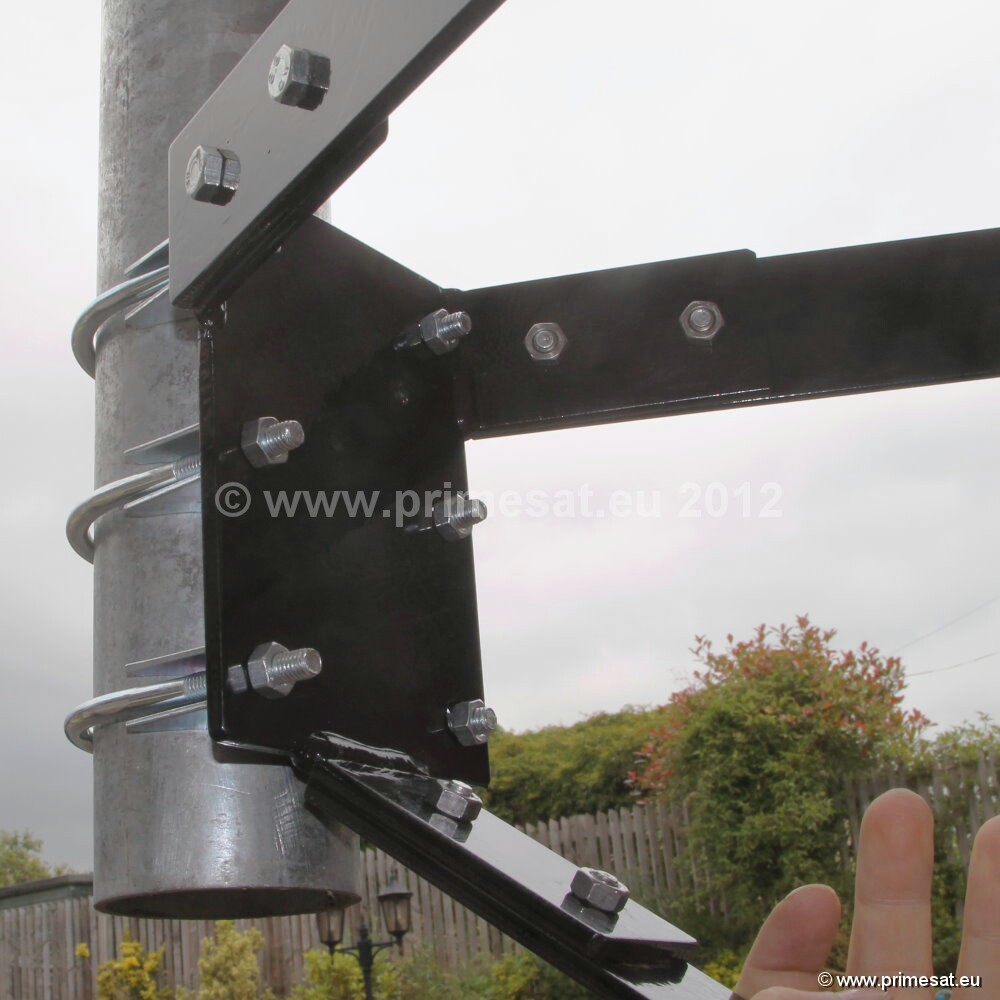

Primesat WMS55076BT heavy duty wall mount. Bolt together. It is possible to buy this stand as a bolt together, it is, however, more expensive.You can see from the pictures that the bolt together version is very rigid and the structuaral integrity is not compomised.The bolt together version is ideal for long distance international shipping as the shipping costs are much lower.
